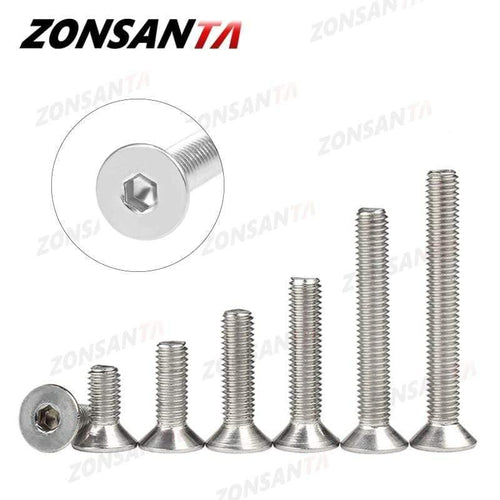

ZONSANTA M2 M2.5 M3 M4 M5 M6 Din7991 304 stainless steel Bolt Hexagon Hex Socket Flat Head Countersunk Screw Furniture screws
Product Detail
- Product Name : M2 M2.5 M3 M4 M5 M6 Din7991 304 stainless steel Bolt Hexagon Hex Socket Flat Head Countersunk Screw Furniture screws
- Product Color : Silver Gray
- Material : 304 Stainless steel
- Screw head type : Hex Socket
- Package Content : M1.6-M3(A pack of 50pcs) , M4(A pack of 20pcs) , M5-M6(A pack of 10pcs)
Features
100% new, high quality, excellent customer service
Cross mechanical screws need to be used with nuts
To use this screw, the product shall have the thread of corresponding size
Thread diameter(d) | Screw pitch | Herd diameter(dk) | Head thickness(k) | Hole depth(t) |
M2 | 0.4 mm | 3.85 mm | 1.3 mm | 0.8 mm |
M2.5 | 0.5 mm | 4.85 mm | 1.7 mm | 0.9 mm |
M3 | 0.5 mm | 5.54 mm | 1.86 mm | 1.1 mm |
M4 | 0.7 mm | 7.53 mm | 2.48 mm | 1.5 mm |
M5 | 0.8 mm | 9.43 mm | 3.1 mm | 1.9 mm |
M6 | 1 mm | 11.34 mm | 3.72 mm | 2.2 mm |
M8 | 1.25 mm | 15.24 mm | 4.96 mm | 3 mm |
