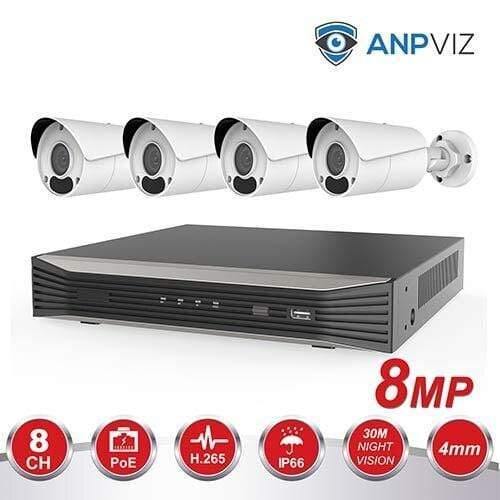

If you’re looking for a feature-rich surveillance solution without the complexity that often comes with a robust system, this Anpviz 4/6/8 cameras 8-channel IP security camera system is the one for you. It is flexible to choose the quantity of camera according to your need.
4 different types of options are provided!
4K 4 Channel 8MP Network Video Record
This NVR support Max 8pcs of 4K 8-Megapixel IP Video input and HDMI output. Onvif compliant supported, you could add any other 3rd party IP camera into ths systems easily.
Connectable to Third-Party Cameras
As the system support onvif protocol, it is connectable to third-party IP cameras. You`re allowed to take full advantage of your cameras and have full control over them.
Super HD 8-Me gapixel High Resolution Security Camera
As one of the best home/business security systems, Anpviz NVR security system records real-time videos on all channels at 8MP high resolution, much clearer than 5MP and 1080P. All cameras provide incredibly bright and sharp images in real color, which enables you to see all objects very clearly.
Cutting-Edge H.265 Video Compression
Improved infrared radiation for 24-hour vigilance, the 8MP cameras ensure a clear night vision, up to 100 feet long distance (depending on the environment). You`re sure to be surprised by the impressive night vision.
Waterproof metal case,widely used for indoor & outdoor
Camera Working Temperature: -25°C ~ 50°C (-13 ℉ ~ 122 ℉)
24/7 recording and monitoring.
Support all cameras recording at the same time (up to 4 cameras).
If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.
Motion Detection & Alerts
This system will detect if there is an intruder and trigger alerts. It will inform you in real time to prevent security threat.
Smart Playback Feature
Easy 3-steps Remote Acess
Watching live monitoring video, recording and playback on smart phones, tablets, and computers. With just a few steps and a few settings, you`ll be able to see whatever the cameras see from anywhere in this world where the network is available.
Language Selection Menu
Default language English, there are 7 different languages contained in language selection menu.
| Model | NVR3004-4K-4P | NVR3008-4K-8P | NVR3016-4K-16P |
| Video/Audio Input | |||
| IP Video Input | 4-ch | 8-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | ||
| Network | |||
| Incoming Bandwidth | 40Mbps | 60Mbps | 60Mbps |
| Outgoing Bandwidth | 64Mbps | 64Mbps | 80Mbps |
| Remote Users | 128 | ||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||
| Video/Audio Output | |||
| HDMI/VGA Output | HDMI: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | ||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Synchronous Playback | 4-ch | 8-ch | 16-ch |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
| Decoding | |||
| Decoding format | Ultra 265, H.265, H.264 | ||
| Live view /Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Capability | 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1 | ||
| Hard Disk | |||
| SATA | 1 SATA interface | ||
| Capacity | up to 8TB for each disk | ||
| External Interface | |||
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface | ||
| USB Interface | Rear panel：2 x USB2.0, Front panel：1 x USB2.0 | ||
| Alarm In | 4-ch | ||
| Alarm Out | 1-ch | ||
| PoE | |||
| Interface | 4 independent 100 Mbps PoEnetwork interfaces | 8 independent 100 Mbps PoEnetwork interfaces | |
| Max Power | Max 30W for single port Max 54W in total ( 13.5W for each ) | Max 30W for single port Max 108W in total ( 13.5W for each ) | |
| Supported Standard | IEEE 802.3at, IEEE 802.3af | ||
| General | |||
| Power Supply | 48V DC Power Consumption: ≤ 5 W( without HDD ) | 52V DC Power Consumption: ≤ 5 W( without HDD ) | |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||
| Dimensions(W×D×H) | 260mm ×240mm × 44mm (10.2" ×9.4" ×1.7") | ||
| Weight ( without HDD ) | ≤ 1.12 Kg ( 2.47 lb ) | ||
