SPECIFICATIONS
Brand Name: DUMBORC
Origin: Mainland China
Material: POLYESTER
Recommend Age: 12+y
Size: 22*22mm
Use: Vehicles & Remote Control Toys
Tool Supplies: Tools
Quantity: 1 pcs
Four-wheel Drive Attributes: Assemblage
Features:
1.FRV Camera: Less noise,low latency, 0.00001 Lux super starlight,Scale: 4:3/16: 9 Switchable TV System: PAL/ NTSC Switchable
2.Micro FPV Camera: Exclusive optimization for LED
3.Mini FPV Camera: Foxeer Cat 3 Micro Dimensions(mm): 19x19mm
FOXEER Cat 3 Mini Dimensions(mm): 22*22mm
4.Night Vision FRV Camera: Large Aperture Night Vision Lens
5.Support: OSD & Menu Remote Control With Foxeer FC
Description:
Foxeer Cat 3 Micro Mini FPV Camera is less noise,low latency, 0.00001Lux super starlight. Exclusive optimization for LED,Large Aperture Night Vision Lens.Scale:4:3/16: 9 Switchable TV System: PAL/ NTSC Switchable
Specification:
FOXEER Cat 3 MICRO
Sensor Type: CMOS 1/3
Scale: 4:3/16: 9 Switchable
TV System: PAL/ NTSC Switchable
Resolution: 1200TVL
FOV:
4:3 FOV-H 100° FOV-D 125°
16:9 FOV-H 100° FOV-D 115°
Shutter Speed (CCD IRIS)PAL: 1/25〜1/10000 sec; NTSC: 1/30〜1/10000 sec
Video Out: CVBS
White Balance: Auto
DNR: 3DNR
WDR: 100db
Day / Night: EXT/ Auto/ Color/ B&W
Flight OSD: Voltage/Cam Title/Time
Power Requirement: DC 4.6V〜20V
Language:
ENGLISH /PYCCKNN / ESPANOL/ITALIANO/
FRANCAIS/ POLSKIM/PORTUGUES /JAPPANESE
Working Temperature: -10°C~+50°C RH90% MAX
Working Humidity: 20-80%
Storage Temperature: -20°C~+70°C
Storage Humidity: 20-95%
Dimensions(mm): 19x19mm
Weight (g): 10.7

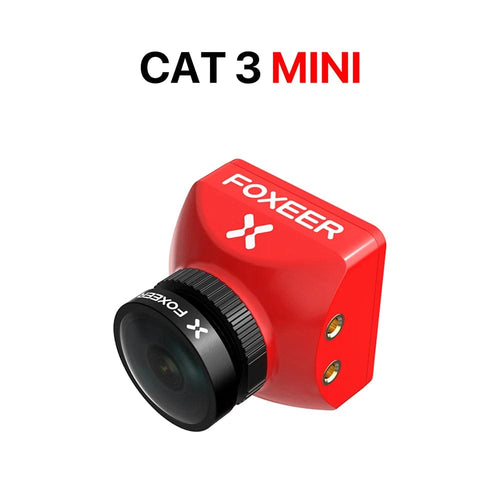

FOXEER Cat 3 Mini
Sensor Type: CMOS 1/3
Scale: 4:3/16:9 Switchable
TV System: PAL/ NTSC Switchable
Resolution: 1200TVL
FOV:
4:3 FOV-H 100° FOV-D 125°
16:9 FOV-H 100° FOV-D 115°
Shutter Speed (CCD IRIS): PAL: 1/25〜1/10000 sec; NTSC: 1/30〜1/10000 sec
Video Out: CVBS
White Balance: Auto
DNR: 3DNR
WDR: 100db
Day / Night Shift: EXT/ Auto/ Color/ B&W
Flight OSD: Voltage/Cam Title/Time
Power Requirement: DC 4.6V〜20V
Language
ENGLISH /PYCCKNN / ESPANOL/ITALIANO/
FRANCAIS/ POLSKIM/PORTUGUES /JAPPANESE
Working Temperature: -10°C~+50°C RH90% MAX
Working Humidity: 20-80%
Storage Temperature: -20°C~+70°C
Storage Humidity: 20-95%
Comsumption: 95mA土 15%@DC12V
Dimensions(mm): 22*22mm
Weight (g): 12.2
Package Included:
1x Foxeer Cat 3 Camera (as your choice)
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
