WHY CHOOSE US?

Two ways of placement /Intel Alder Lake N100 / customized screen theme/ rb lighting / Efficient heat dissipation

rich interface

LAN*2/USB3.0*2/USB2.0*2/HDMI*2/Dc*1/35 mm earphone Jack*1

SATA+NVME SSD/only 0.6L WiFi5 4.2BT Dual-LAN/support 4K dual screen output Powerful 12th Gen Alder Lake-N100 Processor SMALL AND POWERFUL

Provides you with faster speeds to meet your multitasking needs

4 CORES/4 THREAD/6MB CACHE/6W TDP PERSONALIZED LCD SCREEN

DlY your exclusive mini pc screen display SMART SCREEN YOUR EXCLUSIVE VISION

NEVER THE ONLY OPTION, EXPLORE SCREEN DIVERSITY WITH US AND PUT YOUR FAVORITE SUBJECTS IN FRONT OF YOU OCCUPY LITTLE SPACE CUSTOM RGB INTERACTIVE

Beautiful RGB lines, to the plain desktop a little embellishment HIGH EFFICIENCY HEAT DISSIPATION

Thermal resistance is reduced by flattening heat pipes and copper tubes to 3.0 mm , bottom vents and 0.2 mm rear copper fins. The cooling are a is 32,518 square millimetre. lt runs quietly, even when fully loaded MAGNETIC DETACHABLE HOUSING DESIGN

Easily upgrade your mini pc’ s RAM and SSD without a screwdriver to make it better suited to your needs SUPPORTS DUAL-SCREEN 4K DISPLAY

Two HDMl ports, support dual screen output. lt can be used for editing videos,watching stocks, online meetings, and many other scenarios WORK EASIER AND MORE EFFICIENTLY

Support PS, Al, Excel and other work software MULTIPLE INTER FACES TO MEET VARIOUS NEEDS

The dual-network port design provides network redundancy, load balancing, isolation flexibility, and backup to ensure a stable, fast, secure, and flexible network experience

USB2.0*2/USB3.0*2/POWER*1/DC IN*1/HDMI*2/LAN*2/AUDIO*1 PRODUCT PARAMETERS

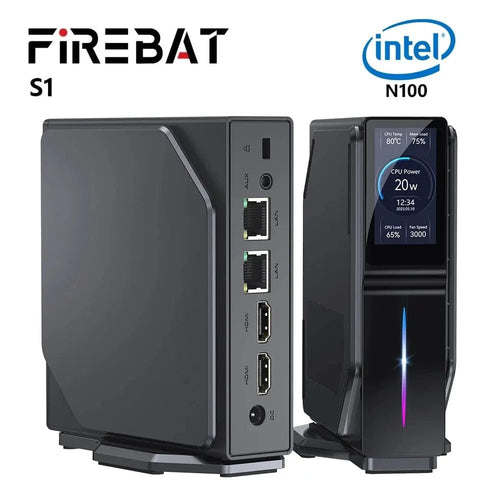

Model: FIREBAT S1 MINI PC

GPU: Intel® UHD Graphics

Weight: About 382g

CPU: Intel N100 (4 core, 4 threads)

Memory: Single channel DDR4 Max to 16GB

Hard disk: M.2 2280 NGFF, Max to 2TB , M.2 2280 NGFF/NVME, Max2TB Port: USB 2.0*2 /USB 3.0*2/HDMI 2.0*2/ Gigabit network port*2

Power supply: 30W 12V 3A adapter power supply

Dimensions:123.8mm*128mm*40.9mm Disclaimer:

1. Please make sure to use the original power supply, and our company will not assume any responsibility for any problems or failures caused by any third-party adapter.

2. Users can use music videos, pictures and software provided by third parties, but we do not assume any responsibility for copyright issues or software failures.

3. If the product breaks down, we will strictly abide by the warranty clauses, but we will not assume any responsibility for any property loss or economic loss that may be caused during use.

4. The equipment is supplied with the built-in software at the factory, which can be used after actual testing. However, if it is deleted or not deleted when looking for compatibility or other issues, it will not incur any impact on the machine. Please note that it is not an issue related to product quality

5. The company reserves the right to improve the product. If there is any change in product specification and design, no further notice is required! Please refer to the real object Tips and FAQ

1. Turn off your Mini PC

If your Mini PC does not respond, press the power button for at least (4-6) seconds until your Mini PC is

turned off.

2. Boot into the system for the frst time

system.

Step 1:Select language/country(region)

Step 2: Select the inputting me thod, and clicks confrm

Step 3: Select the second inputting method, which can be “skipped”

Step 4: Networking: After selecting wif enter password to connect it, Or choose to plug network cable for connection. (Networking wil be updated automatically, and the update process will stay on an interface fora long time, which prolong the start-up time. (Skipping network connections is strongly recommended)

3.Connect WiFi

Note: You may be prompted to enter a security key to activate a Wi-Fi connection.

4. Enter the BIOS setting

●Enter Bios: Click“Del” or “ESC” key.
