SPECIFICATIONS
Brand Name: ERYING
Chipset: Intel Others
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 64 GB
Processor compatibility: 11th Intel Core i7
With CPU: Yes
Support Memory Type: DDR4
Number of PCI: 0
Storage Interface Type: SATA 3
Storage Interface Type: M.2 (NVMe)
Package: Yes
RAID Supported: no
Application: Desktop
Chipset Manufacturer: Intel
Back I/O Ports: 1x RJ45
Back I/O Ports: WIFI
Back I/O Ports: VGA(D-Sub)
Back I/O Ports: 3 x Audio Jacks
Back I/O Ports: 2x USB 3.2/3.1 Gen 1
Back I/O Ports: Displayport
Back I/O Ports: 4 x USB 2.0
Back I/O Ports: HDMI 2.0
PCI - E standards: PCI - E 4.0
Socket Type: Onboard CPU
Hign-concerned Chemical: None
Special Function: none
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Office
Usage Scenario: DESIGN
Usage Scenario: Video Production
Usage Scenario: HPC
Origin: Mainland China
Number of PCIe x 8: 1
Number Of Memory Slots: 2
Support USB Type: USB 2.0
Support USB Type: USB 3.0
Number of PCIe x 4: 1
Onboard Connectors & Header: 24-pin Main Power Connector
Onboard Connectors & Header: CPU Fan Connector(s)
Onboard Connectors & Header: AAFP Connector
Onboard Connectors & Header: SPI TPM Header
Onboard Connectors & Header: Chassis(SYS) Fan Connector(s)
Onboard Connectors & Header: USB 3.0 Connector
Onboard Connectors & Header: 8-pin +12V Power Connector
Onboard Connectors & Header: OthersConnectors & Header
Onboard Connectors & Header: USB 2.0 Connector
Onboard Connectors & Header: COM Port Header
Onboard Connectors & Header: System Panel(s) (Chassis intrusion header is inbuilt)
Memory channel: Double
Number of SATA Ports: 4
Audio Channels: 5.1
Max LAN Speed: 1000Mbps
Quality Certification: ce
Quality Certification: ROHS
Quality Certification: FCC
Number of PCIe x 1: 1
Certification: RoHS
Certification: FCC
Certification: CE
Form Factor: Mini-ITX
Supports M.2 SSD: 2242
Supports M.2 SSD: 2280
Number of M.2: 3
Motherboard Size: 170*170mm
RAM: DDR4 2133/2400/2666/3000/3200(OC)+MHz
Cooling fan socket: LGA1700
Compatible WIFI Card: PCIE Protocol and part of CNVI Protocol

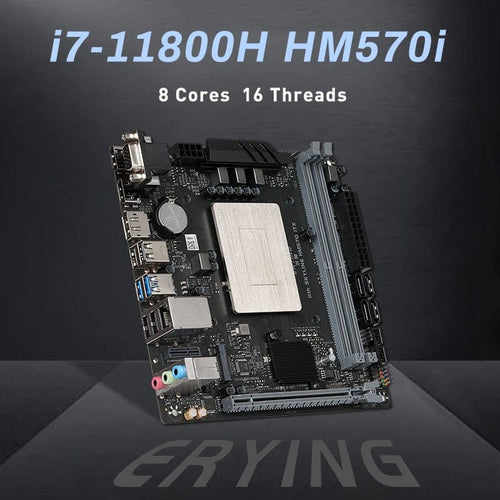

ERYING Gaming PC M-ITX B560i Desktops Motherboard with Onboard CPU Kit Interporser Core i7 11800H i7-11800H SRKT3(NO ES)8C16T Computers Mainboard
