SPECIFICATIONS
Brand Name: EAFC
Origin: Mainland China
Hign-concerned Chemical: None
Battery Capacity(mAh): 18000-20000
Peak Current: 600 A
Conversion Rate: >90%
Number Of Built-in Batteries: >6
External Testing Certification: ROHS
External Testing Certification: FCC
External Testing Certification: CCC
Certification: FCC
Certification: CE
Fast Charge: None
Voltage: 12V
Special Features: USB
Special Features: Lighting
Special Features: warning light
Special Features: SOS Lighting
Brand Name: EAFC
Peak Current: 600A/1200A/2000A
Car starting voltage: 12V
Charging input voltage: 5V 1A
Working Temperature: -40C degree ~ 80 C degree / -4 F degree ~ 131 F degree
Product Size: 160*80*30 mm

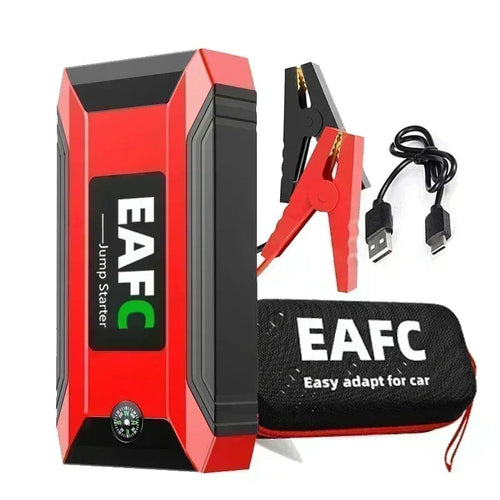

Feature: car jump starter portable power bank
Feature 2: 10W wireless charger
Feature 3: Safety Hammer
Feature 4: Booster
New Arrivals: 2023 new
Use for: Gasoline car 4.0 diesel vehicle 2.0
USB: 5V/1A/2A
LED: Power/voltage/input/output
Special Features 1: Warning Light
Fast Charge: One Way Fast Charge
Warm reminder:
The Peak current 600A is suitable for gasoline vehicles up to 3L
The Peak current 1200A is suitable for petrol cars up to 4L and diesel cars up to 2L
The Peak current 2000A is suitable for petrol vehicles up to 6L and diesel vehicles up to 4L
If you need to check the package tracking details for customer orders shipped from China, please check through the following address
check logistics:https://www.17track.net/zh-cn
Warning:
Matters needing attention (buyers must see)
The product has just been received, you must first turn on the flashlight to discharge, and then charge the product for more than 4 hours, and then start the car, because the product is empty. This operation can prolong the service life of the product!Do not discharge and charge at the same time.
1. It is recommended to start the car with three bars or more than 60% of the power supply
2. Check whether the pile head of the battery is clean
3. Start the car with ordinary clip: Check whether the blue port of the clip is inserted to the end, whether the clip touches the positive and negative poles of the battery with the largest area, and whether the clip is stable and does not shake. First, clip the positive and negative poles of the clip to the positive and negative poles of the battery On, wait 2 to 3 minutes before starting the car. This operation can reduce the load on the power supply
Tips before use
【1】The car cannot be continuously ignited to start the car / or the key is not released, and the next start will be carried out after 30 seconds between each start
【2】The positive and negative poles cannot be reversed. Two clips cannot be connected short-circuited.
【3】Remove the clip within 30 seconds after successfully starting the car.
Violation of the above 3 points may cause the [fuse box] of the clip to burn out, please pay attention to the operation method.
Specifications:
Peak Current :1200A
Starting Current :600A
Car Jump Start Output :12V
USB Output 5V/2A
Gas Engine Rating :Up to 4.0L
Operating Temperature :-20℃-60℃
Diesel and steam double start strong power
4.0L gasoline car: Support 12V/4.0L displacement and below
2.0L diesel car:Support 12V/2.0L displacement and below
Night emergency, Rescue lighting:
1. Built-in glare lighting system.
2. Double click to enter,red and blue flashes,double click again to exit.
3.Long press the middle button for 3 seconds.
Press again in burst mode.
4. After turning on the flashlight,press the switch again to become a flash,the switch is the distress mode.
Packing List:
1*Battery clip
1*Instruction
1*USB cable
1*carton packing
Note:
1: It takes about 3 hours for the product to be fully charged. Turn ON first and then charge the product.
2: when starting the car, you need to turn the switch to OFF before starting the car.
3: our car power supply has the difference between the peak value 400A and the peak value 600A. The product with a peak value of 400A is 40C, which can start gasoline-powered car with a displacement below 4.0. The doubling of peak 600A is 60C. Can start diesel vehicles with a displacement of less than 4.0 gasoline-powered car and a displacement of less than 2.0. (Except cars with aging engines.)
5: The product is not used for a long time. It is recommended to charge it once every 3 months.
6: The product needs to be placed at room temperature, which is beneficial to the service life of the product.
Special precautions for using mobile power:
1. When starting the car, insert the blue plug tightly and into place, otherwise the effect will be affected.
2. When starting the car, the blue power indicator should be more than 60%, which can prolong the service life of the product.
3. If the car cannot start, do not force it to start. Check whether the battery clip is properly clamped and whether the original car battery terminal is rusty and dirty. Continue to start after cleaning.
4. In the process of starting, if the vehicle cannot start all the time (1-2 times), do not force to continue starting, and further check whether there are other faults, otherwise, the fuse will be burned and the starting power supply will be damaged.
5: when starting the car, the clip port has been used to use air pump and other on-board electrical appliances, the switch needs to be turned OFF.
6: our car power supply uses different styles of 400A and 600A. If your car exceeds the number of products, the power supply will play an automatic power-off protection function when starting the car, plug in the charger and reactivate it to use it normally.
7: when the car is fed and there is no electricity at all, clamp the car power clip directly on the positive and negative poles of the car to start. If the car is powered, remove the positive poles, clamp the clip on the ground iron and the negative clip on the negative pole. Can be started.
8: when starting the car for the first time, you need to put off the electricity in the product, plug in the charger to charge it, and then start the car.
