SPECIFICATIONS
Brand Name: Yardeen
Timer Type: Ac Pro
Origin: Mainland China
Model Number: 10204
Type: Garden Water Timers
Material: Plastic
Color1: red/grey
Color2: green/white

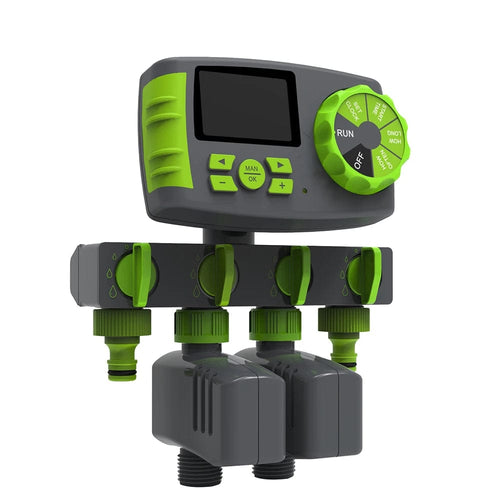

>One 4-way water distributor and two solenoid valves are included
>Easy settings in one controller
>Turn faucet into a 4-zone watering system
>2 XAA alkaline battery required (not included)
>Start time can be set 4 different start times
>How long :1,2,3,4,5,6,7,8....180mins ( every valve can be set alone)(can only set once)
> Frenquency can be set per day, 2,3 ....15 days, week mode
>It can work with rain sensor 21103(if you buy the rain sensor, please remark send an adapteror send order message)
Remark:Each valve can't be set start time separately.
When the product start work.all valves will work step by step,they will not wrok together!!
Controller Specification:
>Working voltage: DC 3V
>Battery: 2 XAA alkaline battery
>Static current: <=60uA
>Drive pulse width: 100ms, pulse height: 18v
>Low voltage sign blinks at <=2.4V
>Working water pressure: 0.5-8 BAR
>Working water temperature: 5-60 degree （please don't use in a freeze environment ）
>Color: white and green red and grey
