SPECIFICATIONS
Brand Name: Aqara
Communication method: zigbee
Hign-concerned Chemical: None
Origin: Mainland China
Plug Type: EU Plug
State of Assembly: Ready-to-Go
Features: Flashing
Gyro: Aqara E1 switch
Model Number: Aqara E1 switch
Control Channels: 2 CHANNELS
Max Speed: Aqara switch E1
Scale: 1:5
Feature 1: Aqara E1 switch
Feature 2: Aqara switch E1
Feature 3: Aqara smart wall Switch
Feature 4: Aqara wall Switch
Feature 5: Aqara Switchs
Aqara E1 Smart Wall Switch Wireless Switch Zigbee 3.0 With/No Neutral One Key Remote Control For Xiaomi Mi Home Homekt APP
Warmming tips
1) Aqara Smart Wall Switch E1 is newest from Xiaomi Ecological chain, can works with APP xiaomi mi home / aqara home / homekit
2) The wall switch can connect the wire, can control any bulb throught the wire ; while the wireless key cannot wired, only can control other devices by ZigBee 3.0 gateway
3)The E1 wall Switch can works with the zigbee 3.0 gateway (Xiaomi gateway 3 , aqara HUB M1S ,Aqara Hub E1, Aqara Smart Hub M2.)
4) When you connect, the region where the app is located is set to Mainland China.
1 ) WIRELESS VERSION
Features :
Cannot be wired, match with xiaomi or aqara smart bulb or light through ZigBee 3.0
* model ( wireless 1key : WXKG16LM , wireless 2key :WXKG17LM )
* Portable, realize controlling everywhere
* Wireless connection: ZiGBee 3.0
* Built-in CR2032 battery
* support APP : mi home , aqara home , homekit .
Feature:
2) Aqara Smart Wall Switch E1 (No Neutral)
Single Rocker ( 1 key )
Model: QBKG38LM
Dimensions: 86 x 86 x 30.15mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: 220V--, 50Hz
Rated Power: Max 1100W, Min 3W
Operating Temperature:0°C~40°C
Operating Humidity: 5~95% RH. No condensation
Double Rocker (2 keys)
Model: QBKG39LM
Dimensions: 86 x 86 x 30.15mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: 220V~,50Hz
Rated Power: Max 1100W, Min 3W
Operating Temperature:0°C~40°C
Operating Humidity: 5~95% RH. No condensation
3) Aqara Smart Wall Switch E1 (With Neutral)
Single Rocker ( 1 key )
Model: QBKG40LM
Dimensions: 86 x 86x 30.15mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: Max 10A220V~, 50Hz
Rated Power: Max 1100W
Operating Temperature:0" C~40" C
Operating Humidity: 5~95% RH. No condensation

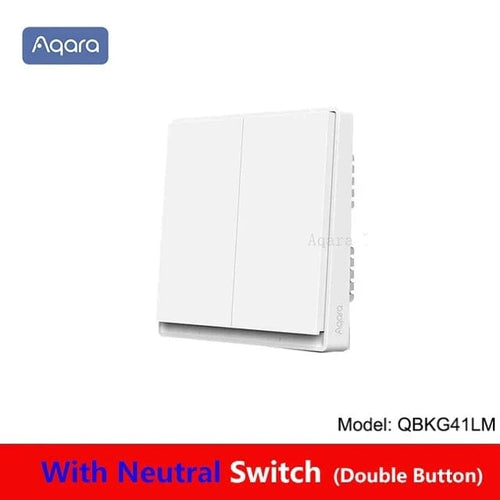

Double Rocker (2 keys)
Model: QBKG41LM
Dimensions: 86 x 86 x 30.15mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: Max 5A 220V~, 50Hz
Rated Power: Max 1100W
Operating Temperature:0" C~ 40 C
Operating Humidity: 5~95% RH. No condensation
