SPECIFICATIONS
Brand Name: SLMPLEFUN
Use: Universal
Origin: Mainland China
Wireless Communication: RF
Support APP: No
Certification: CE
Frequency: 433 MHz
Package: Yes
Model Number: SocketWB03+KT12Y
Working voltage: AC 85-245 V 50/60HZ
Socket Size: 50*50*80 mm
RF frequency: 433.92MHz
Code: 1527 leanring
Max current: 16A
Load Power: 3300W
Signal Range: Up to 150m(theoretical distance)
Controller terminal: L/N
Shell: YES(PC material)
Socket Feature1: 15A high power Safer to use
Socket Feature2: RF wireless control
Socket Feature3: Suitable for EU and FR standard .
Color: White
Mini Round Switch: 50*50*13 mm
Mini Round Switch Battery: 2pcs CR2016(included)
Mini Round Switch Color: White/Yellow
Amount of storage remote controls: About 30 pieces
Modulation Mode: ASK superheterodyne wireless reception
Application scenario: Family, Farm, Factory, Office, Supermarket
Application2: Fan, Fish tank, Light, LED, Lamps, Pump, Water heater...
Choice: yes
semi_Choice: yes
NOTE:

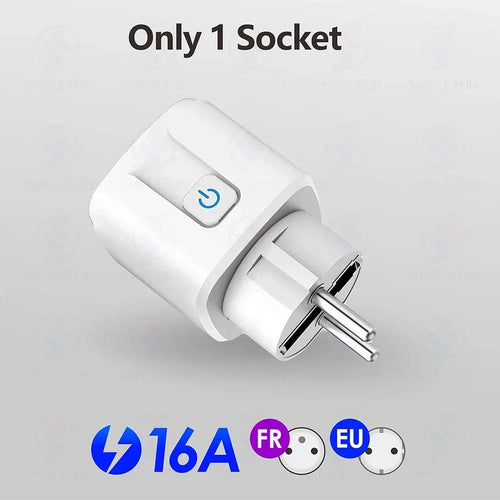

Hello, friends. In order to meet the needs of different customers, our page has 2 options: single socket, single remote control. Please purchase according to your own needs. ,Thanks.
Product Advantages
√ RF433Mhz Radio frequency control. Easy to use
No wiring required, suitable for EU and French standards, simple setup steps.
√ 16A High Power
Meet the power of various household appliances, safer to use.
√ Stable Signal, Long Control Distance
Powerful chip, Signal can go through walls,The effective distance can reach 50 meters.
√ Supports Flexible Pairing
No interference to use several in the same room, One socket can be stably paired with up to 30 wireless switches.
√ Wireless small round remote controller
●Comes with double-sided tape, can be pasted anywhere.
●Using 2pcs CR2016 batteries (included), they can be used normally for more than 7000 times.
Comprehensive after-sales and service
√ This product has passed CE and RoHS and FCC certification.
√ 1 year warranty or replacement commitment.
√ Our after-sales service team can provide the most professional solution to any of your problems.
Features
▼ RF433Mhz Radio frequency control. Easy to use ▼
No wiring required, suitable for EU and French standards, simple setup steps.
▼ Supports Flexible Pairing ▼
No interference to use several in the same room, One socket can be stably paired with up to 30 wireless switches
▼16A High Power▼
Meet the power of various household appliances, safer to use.
After power off, power on again, the device state is off by default.
▼ Stable Signal, Long Control Distance ▼
Powerful chip, Signal can go through walls,The effective distance can reach 50 meters.
▼ Wireless small round remote controller ▼
●Comes with double-sided tape, can be pasted anywhere.
●Using 2pcs CR2016 batteries (included), they can be used normally for more than 7000 times.
Operating mode
▶ Description:
●Pressing the button on the remote to turn the device on, pressing the same button again turns the device off.
▶ Data matching:
1. Press and hold the learning button until the indicator light lights up, then release your hand.
2. Press the button on the remote control once, success.
▶ Clear date:
Press and hold the learning button until the indicator light flashes several times and then release your hand. success.
Parameter
Max current : 16A
Max load : 3300W
RF frequency : 433MHz
Working temperature : -30~+80
Receiving Sensitivity : >97dbm
Amount of storage remote controls : about 30 pieces
Support encoding : 1527 Leaning code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 150 meters
Size :50*50*80mm
▶Wireless small round remote controller
Support encoding : 1527 Leaning code
RF frequency : 433MHz
Size : 50*50*13 mm.
Battery : CR2016*2 ( Included)
Double-sided tape : Included
Feature : No wiring required.Small size, easy to carry.
Q & A
1.Can i use my own 433mhz remote to control this socket?
--We suggest that you should use our remote to work with socket.Because same frequency remotes also have many different codes.
2. The power down and come again,does socket in ON status?
--No sir.After you set up with remotes,the socket will only ON when you pressed remote button.
3.Does this socket have wifi functio?
--Sorry sir.It is rf 433mhz only
▶ Please contact with us if you have any questions.Thank you.
▶ We have own factory,if you want to do ODM OEM bussiness,please contact with us.
