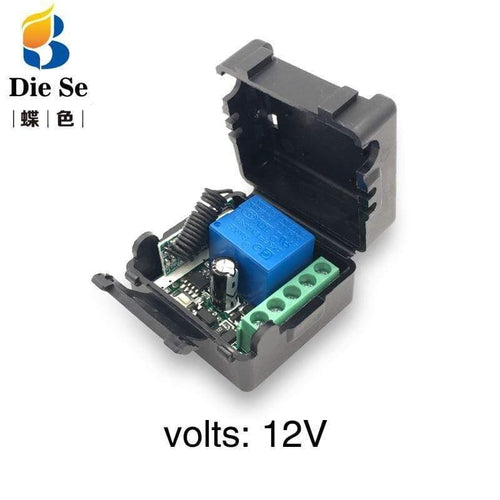

433 MHz rf Remote Control DC 12V 24V 10A 1CH Relay Receiver for universal garage/door/Light/LED/Fanner/motor/Signal transmission
- Working voltage : DC 12V / DC 24V
- Input vlotage : 1~250V
- Output vlotage : 1~250V
- Quiescent Current : <5MA
- Max current : 10A
- RF frequency : 433MHz
- Working temperature : -30~+80
- Receiving Sensitivity : >97dbm
- Amount of storage remote controls : 25 pieces
- Support encoding : 1527 Leaning code /2262 fixed code
- RF Operating mode : ASK superheterodyne wireless reception
- Receiving range : Open space is more than 50 meters
- Remote operating mode : Momentary Mode / Toggle Mode / Latched Mode / Delay Mode
Wide Range of Uses
Super Stable RF Output
Perfect Craft Detail Control
NO : Normal open COM : Common NC : Normal closed
Exquisite Detail Design
Package include
Receiver module ( include Shell )
Product Manual
Wiring Diagram
Operating Mode
You can match the Transmitter with the Relay Receiver Module in 4 modes.
Set Up
On this products details page, there is a demonstration video available.
