Features
It is generally used for car seats, home cinemas and massage cushions, body feeling music massage mattresses, Internet cafes in entertainment places, SPA, etc. It can make you feel the unique immersive effect brought by body feeling bass music
Force peak: 30 lbs. per ft total when used in 4 PUCK
Specification:
Frequency：60Hz
Nominal Impedance：4 / 8Ω
Dc resistance：3.*/ 6.* Ω
Rated power：20W(8 Ω ), 25W(4 Ω ),
Dc resistance：3.*/ 6.* Ω
Rated power：20W(8 Ω ), 25W(4 Ω ),
Max Power：30W
peak power：50W
peak power：50W
Voice coil diameter :28mm
Sensitivity：86db
Frequency Range: fo-20 KHZ
Size： Diameter 50mm,Height 30mm
Size： Diameter 50mm,Height 30mm
Net Weight：268g/piece
|
|
How to use: simply treat it like a bass speaker! Connect a power amplifier output of more than 50W to play DJ heavy bass music. The vibration horn and the music are synchronized and vibrate. The common shock is bass and bass.
Application: Car shock chair, movie shake sofa, music shock mattress, music relax chair, shake computer chair, low-frequency vibration therapy, Chinese medicine massage conditioning, common shock speaker, mechanical vibration equipment, vibration test test, water wave sand vibration art pattern , ---- Listen to music with the body, different experience.
Impedance: 4OHM or 8OHM
Rated Power: 4OHM 25W (Recommed 25W-30W Amplifier Board）
Rated Power:8OHM 20W (Recommed 20W-35W Amplifier Board）
About the 4OHM,8OHM:
a：.4ohm Vibration Speaker Sound larger, 8Ohm Sound exquisite.
b：In general, 4Ohm Vibration speakers can be used for 4 ohm and 8 ohm IC amplifier board, 8ohm speaker suitable for 8 ohm IC amplifier board.

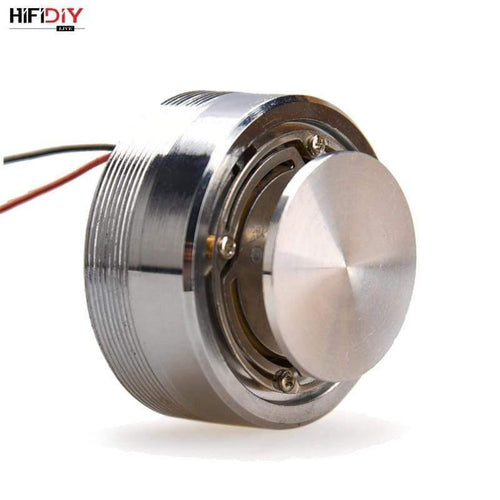

Vibration Speaker Features:
1. Small size (Diameter 50mm), Power (20-25 Watts), Bass strong (FO80HZ), Can not install the box, Convenient DIY friends to install.
2. Installation environment is simple, as long as there is a plane on it, the top of the aluminum cover down, Fit in a different plane, have different effects.
3. To do vibration sound: easy to carry, a small one, casually put, that is, the outbreak of sound quality.
Installation of vibration Speaker:
1. Positive and negative lines connected to the audio cable, Connecting the amplifier to use.
2. Installation: The top cover is face down, fastened to any plane (vertical installation ), it resonates with the posted plane and sounds. Audition with Double-sided adhesive paste on it. Long-term fixed position, it is recommended to use a strong universal glue fixed.
3. According to the power of the speaker to adjust the amplifier, if the power amplifier is too large, you can open a little.
