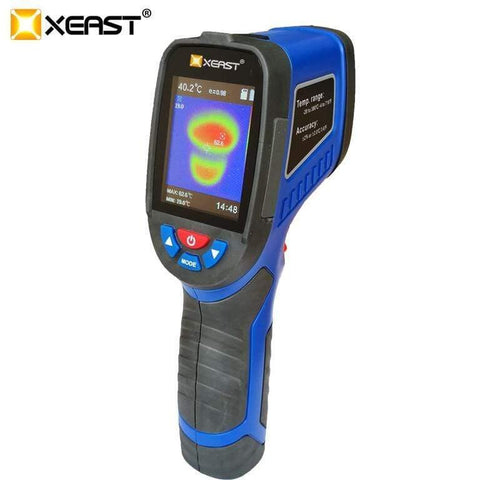

Fast Delivery New 2020 Super Clear Infrared Camera XE-26D / XE-26 / XE-27 / XE-28 / XE-31 / XE-32 Serie
Specification Comparison Table to XE-26D/XE-26/XE-27:
| Model | XE-26D | XE-26 | XE-27 |
| IR Resolution | 32*32 | 33x33 | 33x33 |
| Temperature Range | -20℃~380℃/-4℉~716℉ | -20℃~380℃/-4℉~716℉ | -20℃~380℃/-4℉~716℉ |
| Accuracy | ±2% or ±2℃(±4℉) | ±2% or ±2℃(±4℉) | ±2℃ (±3.6℉) or ±2% of reading |
| Display | 2.4" TFT 320x240 Pixels color | 2.4" TFT 320x240 Pixels color | 2.4" TFT 320x240 Pixels color |
| Visible Camera | 300,000 pixels | 300,000 pixels | 300,000 pixels |
| Field of View(FOV) | 33°x33° | 33°x33° | 33°x33° |
| Best Focus Distance | 0.5m | 0.5m | 0.5m |
| Thermal Sensitivity | 0.5℃ | 0.5℃ | 0.15℃ |
| Emissivity | 0.1-1.0 Adjustable | 0.1-1.0 Adjustable | 0.10~1.0 adjustable |
| Wavelength Range | 8-14μm | 8-14μm | 8-14um |
| Ambient Temperature | N/A | N/A | -20℃~70℃/-4℉~158℉:±1.0℃(±1.8℉) |
| Ambient Humidity | N/A | N/A | 0-100% RH:30-10%RH,±3%RH,Others:±4%RH |
| Dew Point Temperature | N/A | N/A | -30℃~100℃/-22℉~212℉:±1.0℃(±1.8℉) (25℃/77℉,40-80%RH) |
| Wet Bulb Temperature | N/A | N/A | -30℃~100℃/-22℉~212℉:±1.0℃(±1.8℉) (25℃/77℉,40-80%RH) |
| Color Palettes | Iron color,rainbow and gray | Iron color,rainbow and gray | Iron red,Rainbow, Gray(white hot) scale(black hot) |
| Image Capture Frequency | 9HZ | 9HZ | 9Hz |
| Focus Mode | Fixed | Fixed | Fixed |
| Image Storage | SD Card(TF Micor) 8GB | SD Card(TF Micor) 8GB | SD Card(TF Micor) 8GB |
| File Format: | bmp | bmp | bmp |
| Power Type | 4 * 1.5V AA battery and USB | 4 * 1.5V AA battery and USB | 4*1.5V“AA”size battery and USB |
| Battery Life | 6 hours | 6 hours | 6 hours |
| Working Conditions | -5℃ to 40℃ (23℉ to 104℉) | -5℃ to 40℃ (23℉ to 104℉) | -5℃ to 40℃/23℉ to 104℉;10%RH to 80%RH |
| Storage Conditions | -20℃ to 50℃ (-4℉ to 122℉) | -20℃ to 50℃ (-4℉ to 122℉) | -20℃ to 50℃/-4℉ to 122℉;10%RH to 80RH |
| Item Size | 260*200*102mm | 260*200*102mm | 260*200*112mm |
| Item Weight | 0.3kg | 0.3kg | 0.35kg |
| Package Includes | 1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1* Screw Tool 1 * User Manual 1 * Gift Box | 1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1* Screw Tool 1 * User Manual 1 * Gift Box | 1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1* Screw Tool 1 * User Manual 1 * Gift Box |
Specification Comparison Table to XE-28
| Model | XE-28 |
| IR Resolution | 60*60 |
| Temperature Range | -20℃~380℃/-4℉~716℉ |
| Accuracy | ±2% or ±2℃(±4℉) |
| Display | 2.5" TFT 320x240 Pixels color |
| Visible Camera | 300,000 pixels |
| Field of View(FOV) | 20°x20° |
| Best Focus Distance | 0.5m |
| Thermal Sensitivity | 0.5℃ |
| Emissivity | 0.1-1.0 Adjustable |
| Wavelength Range | 8-14μm |
| Color Palettes | Iron color,rainbow and gray |
| Image Capture Frequency | 9HZ |
| Focus Mode | Fixed |
| Image Storage | SD Card(TF Micor) 8GB |
| File Format: | bmp |
| Power Type | 4 * 1.5V AA battery and USB |
| Battery Life | 6 hours |
| Working Conditions | -5℃ to 40℃ (23℉ to 104℉) |
| Storage Conditions | -20℃ to 50℃ (-4℉ to 122℉) |
| Item Size | 260*200*102mm |
| Item Weight | 0.3kg |
| Package Includes | 1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 8GB Mobile U Disk 1* Card Reader 1 * User Manual 1 * Gift Box |
| Model | XE-31 | XE-32 |
| IR Resolution | 160*120 | 220*160 |
| Temperature Range | -20℃~300℃/-4℉~572℉ | -20℃~450℃/-4℉~842℉ |
| Accuracy | ±2% or ±2℃(±4℉) | ±2℃ (±3.6℉) or ±2% of reading |
| Display | 3.5" TFT 320x240 Pixels color | 3.5" TFT 320x240 Pixels color |
| Visible Camera | 300,000 pixels | 300,000 pixels |
| Field of View(FOV) | 35°x26° | 35°x26° |
| Best Focus Distance | 0.5m | 0.5m |
| Thermal Sensitivity | 0.07℃ | 0.07℃ |
| Emissivity | 0.1-1.0 Adjustable | 0.10~1.0 adjustable |
| Wavelength Range | 8-14μm | 8-14um |
| Color Palettes | Iron color,rainbow and gray | Iron red,Rainbow, Gray(white hot) scale(black hot) |
| Image Capture Frequency | 9HZ | 9Hz |
| Focus Mode | Fixed | Fixed |
| Image Storage | SD Card(TF Micor) 4GB | SD Card(TF Micor) 4GB |
| File Format: | bmp | bmp |
| Power Supply | rechargeable 18650 battery & USB | rechargeable 18650 battery & USB |
| Battery Life | 6 hours | 6 hours |
| Working Conditions | -5℃ to 40℃ (23℉ to 104℉) | -5℃ to 40℃/23℉ to 104℉;10%RH to 80%RH |
| Storage Conditions | -20℃ to 50℃ (-4℉ to 122℉) | -20℃ to 50℃/-4℉ to 122℉;10%RH to 80RH |
| Item Size | 260*200*102mm | 260*200*112mm |
| Item Weight | 0.3kg | 0.35kg |
| Package Includes | 1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 4GB Mobile U Disk 1* Card Reader 1 * User Manual 1 * Gift Box | 1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * 4GB Mobile U Disk 1* Card Reader 1 * User Manual 1 * Gift Box |
