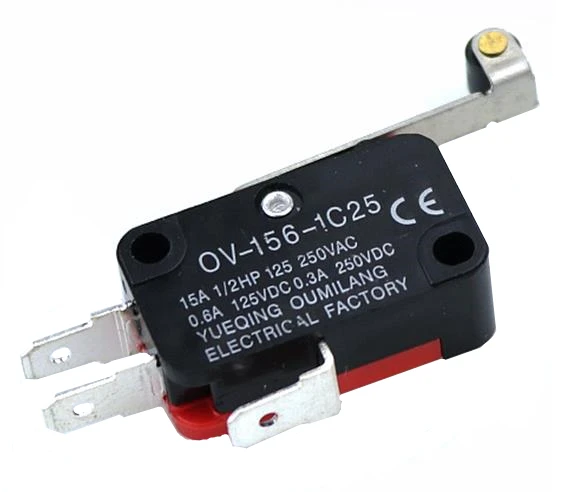

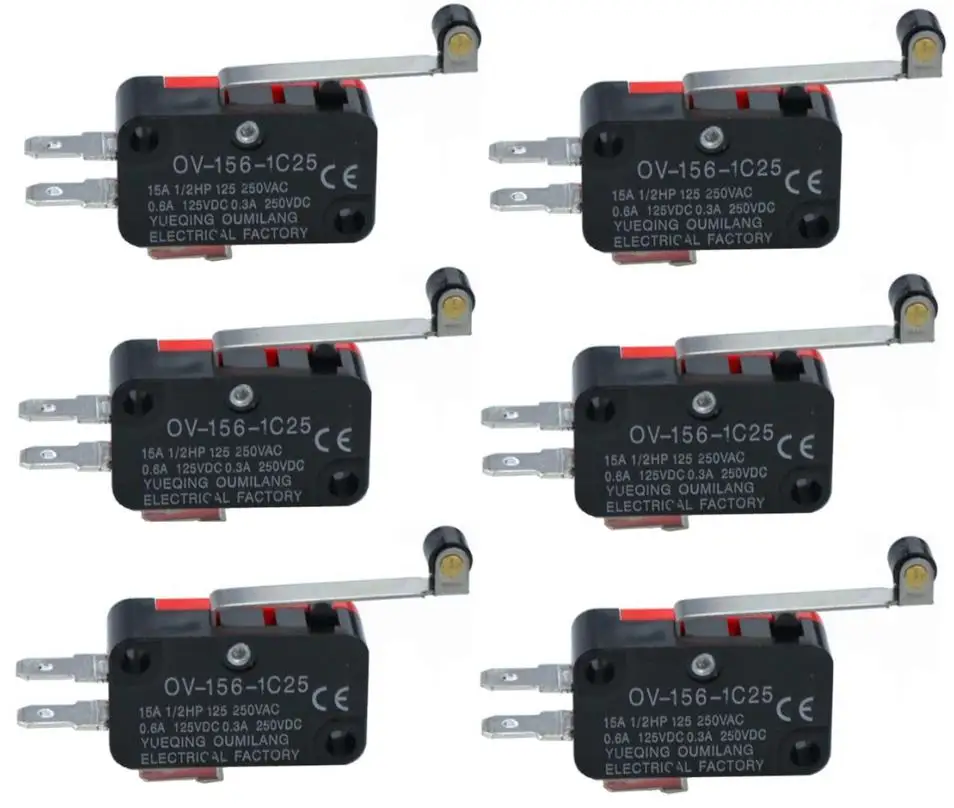

Micro Switch Spdt Hinge Roller Lever 15A V-156-1C25
Model : V-156-1C25
Rating :15A, 1/2HP, 125/250VAC 0.6A,125VDC; 0.3A, 250VDC
Contact configuration: SPDT
Switch Body Size : ~2.8(L) x 1(W) x 1.6cm(H) / 1.1"(L) x 0.39"(W) x 0.63"(H)
Fixing Holes Dia. : ~0.32cm / 0.13"
Button Height : ~0.3cm / 0.12"
Actuator Size : ~2.8(L) x 0.45cm(W) / 1.1" x 0.18"
Terminal Blade Width : ~0.47cm / 0.19"
Material : Plastic & Metal
Color : Black, Red
3 terminals, applicable to AC DC control circuits.
Designed to control the movement of a mechanical part.
Typically utilized in industrial control applications to automatically monitor and
indicate whether the travel limits of a particular device have been exceeded.
High precision mechanism design offering acute operation and long life.
Package Included:
1 x Micro Limit Switch
